Laser Marking and Coding Fume Extractor

PA-300TS-IQ Smoke and Dust Purifier.

1. Purifier picture:

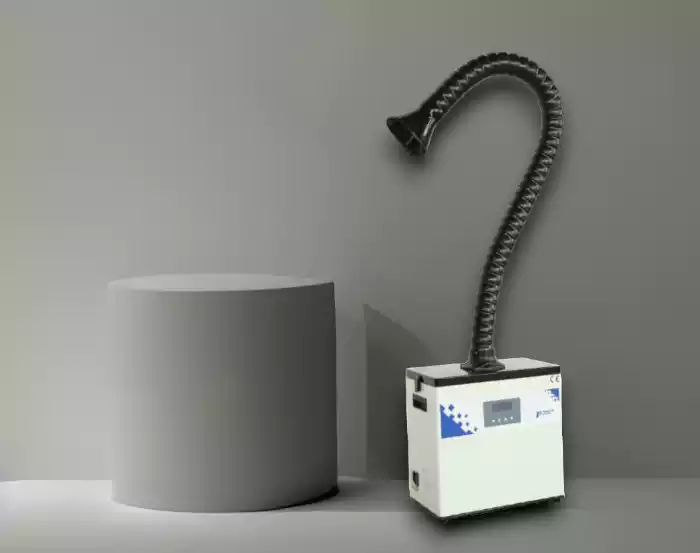

Purification machine physical map

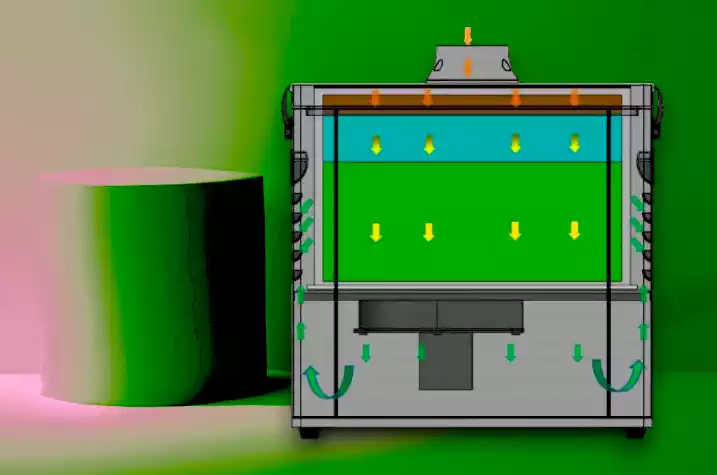

Purification schematic

2. Purifier introduction

Application :

It is suitable for the purification of soot during laser marking, engraving, scribing, coding, manual soldering,
dipping tin, manual repair of circuit boards, etc.

Working principle :

The brushless fan in the purifier generates air volume and negative pressure, sucks smoke and exhaust gas
into the filter, and purifies it by multi-stage filter elements such as primary efficiency, intermediate
efficiency, high efficiency, and gas filter for indoor discharge.

Features and benefits :
  1. The machine is small in size, low in operating noise and easy to move;
  2. Low power consumption and high efficiency brushless fan, stable operation and long service life;
  3. The air volume can be adjusted, and the LCD screen can check the air volume of the machine in realtime;
  4. The control system comes with a filter plug alarm function, prompting customers to replace the filter in
    time;
  5. Equipped with infrared or wireless remote control to facilitate remote operation of the machine;
  6. Four-stage filter to ensure complete purification of soot and harmful substances;
  7. The filter element can be replaced separately, which reduces the use cost of the filter element, and it is
    more convenient to maintain and replace the filter element;
  8. The filtration efficiency is up to 99.7%@0.3 microns (note: our self-test);
  9. Equipped with high-quality universal adjustment to support smoking bamboo tube.

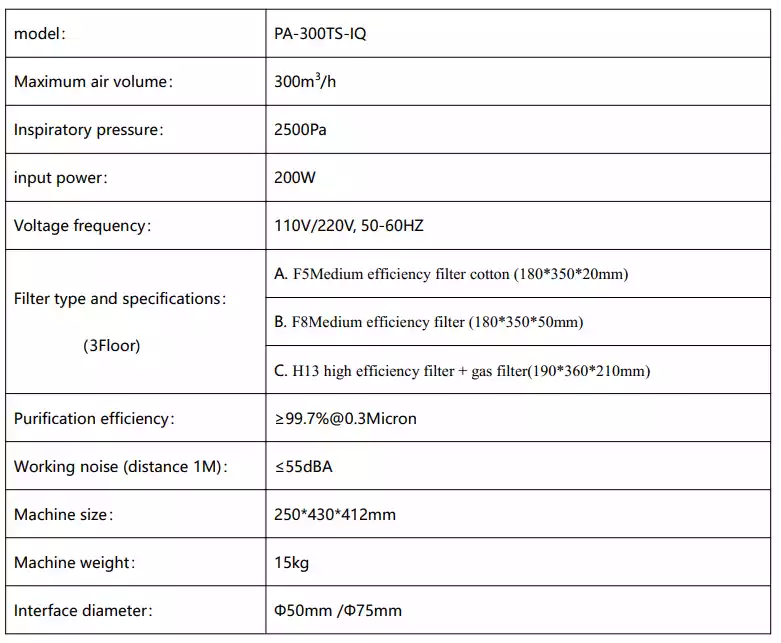

3.Purifierparameters

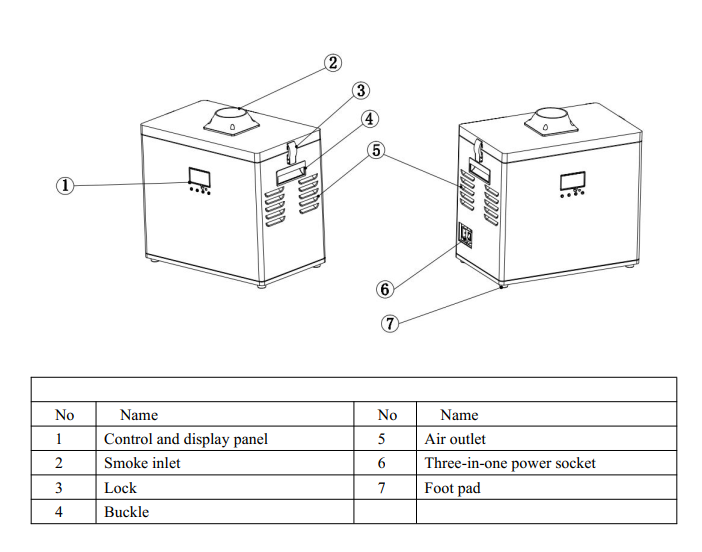

4. Purifier appearance:

Key Benefits of the Product

The variety is complete, suitable for various industries, and meets European and American emission standards. Exclusive patented technology, the service life of the filter element of the purifier is extended by 30%, and the comprehensive use cost is reduced by 20%

  • (1). The body is small in size, low in running noise, and equipped with casters for easy movement;
  • (2). TS-IQ, TD-IQ, FS-IQ series are equipped with low power consumption, maintenance-free, high-volume brushless fans, stable operation and long service life. The TS-LD-HP-IQ series is equipped with a high negative pressure brushless fan with large suction power;
  • (3). The air volume can be adjusted, and the LCD display can check the air volume and gear of the machine;
  • (4). The control system has a filter element blockage alarm function, prompting to replace the filter element in time;
  • (5). Configure wireless remote control to facilitate remote operation of the machine. The remote linkage start-stop interface can also be configured;
  • (6). Multi-stage large-capacity filter to ensure efficient purification of smoke, odor and harmful gases. It can be equipped with a special filter element to purify the smoke and harmful gases generated by PVC materials;
  • (7). The filtration efficiency of smoke and dust is as high as 99.7% @0.3 microns (our company's self-test), which can be discharged indoors;
  • (8). The filter element can be replaced separately, which reduces the use cost of the filter element and makes it easier to maintain and replace the filter element;
  • (9). Stainless steel chassis can be customized according to customer requirements.
  • (10）With castors, easily to move.
Longer Engine Life

Exclusive patented technology, the service life of the filter element of the purifier is extended by 30%, and the comprehensive use cost is reduced by 20%.

Earth Friendly

Multi-stage large-capacity filter to ensure efficient purification of smoke, odor and harmful gases. It can be equipped with a special filter element to purify the smoke and harmful gases generated by PVC materials;

Frequently Asked Questions

Why choose the product PA-300TS-IQ Smoke and Dust Purifier?

Our PA-300TS-IQ fume extractor suitable for air purification, fume filtration and dust collection for many different industry

A-300TS-IQ Dust Collector with one air inlet and one freestanding arms, suitable for two workstations. It's with Low noise, bigger suck power, high filtration performance, nice quality, easy to move, also with LCD display to show air flow and air pressure, air flow can be adjusted by key switch and remote controller.

  1. Low noise, bigger suck power, high filtration performance,nice quality, easily move.
    Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet;
  2. Special sound- absorbing materials reduce operating noise to improve working efficiency;
  3. Taiwan brushless blower, PWM speed control, Alarm system after filter block;
  4. Four layers filter modules to make sure most fumes & particles to be filtrated, protect environment
    security;
  5. Integrated cabinet with trundle, more freely, small foot print, installed easily, decreasing energy consumption.
  1. Soldering Process, like Electronics & PCB board producting;
  2. Laser marking metal process;
  3. Beauty Salon, Nail Salon, Hair Salon;
  4. Lab, University, School;
  5. Printing & AD processing;
  6. Textile Processing;
  7. Food, Pharmaceutical & Tobacco Manufacturing;
  8. Lab test;
  9. Medical.
