C-PLATE COVER

Telescopic Cover

HANSUNG C-Plate Cover is the essential product that protects the important parts of a machine from foreign materials generated; such as chips, coolants, hydraulic fluids, etc. in the process of machining.

C-Plate Cover produced with high-tension steel plates, or SUS ensures the excellent durability of a high-speed machine, and helps maintaining and extending life of a machine.

Smooth operation of HANSUNG Cover manu- factured with super precision, fulfil long-term stability of maching by minimizing the machine load, and maintaining the precision.

Applications of C-Plate Cover

  • Applications of Telescopic Cover
  • Machining center
  • CNC lathe & Engraving machine
  • Grinding machine
  • Milling machine & Large-sized Planomiller
  • Boring machine
  • Pentagonal processing machine
  • Any important part of machines where protection is needed.

Features of Telescopic Cover

  • Application available to all sized machines.
  • Great compatibility & flexibility with machines and machine parts.
  • Excellent design.
  • Extreme precision.
  • Suitable material & surface treatment available on customers’ specific requirements.
  • High durability through continuous R&D on standarization of machine parts.
  • Various shapes & designs available, according to the features and types of a machine.
  • Application of the world-wide qualified X-type Link Cover:
    As a Patented Cover, stands out for high-quality & reliably high-performances. Extreme precision & durability notably reduces noise and vibrations generated by high-speed machining, and improve machining stability.

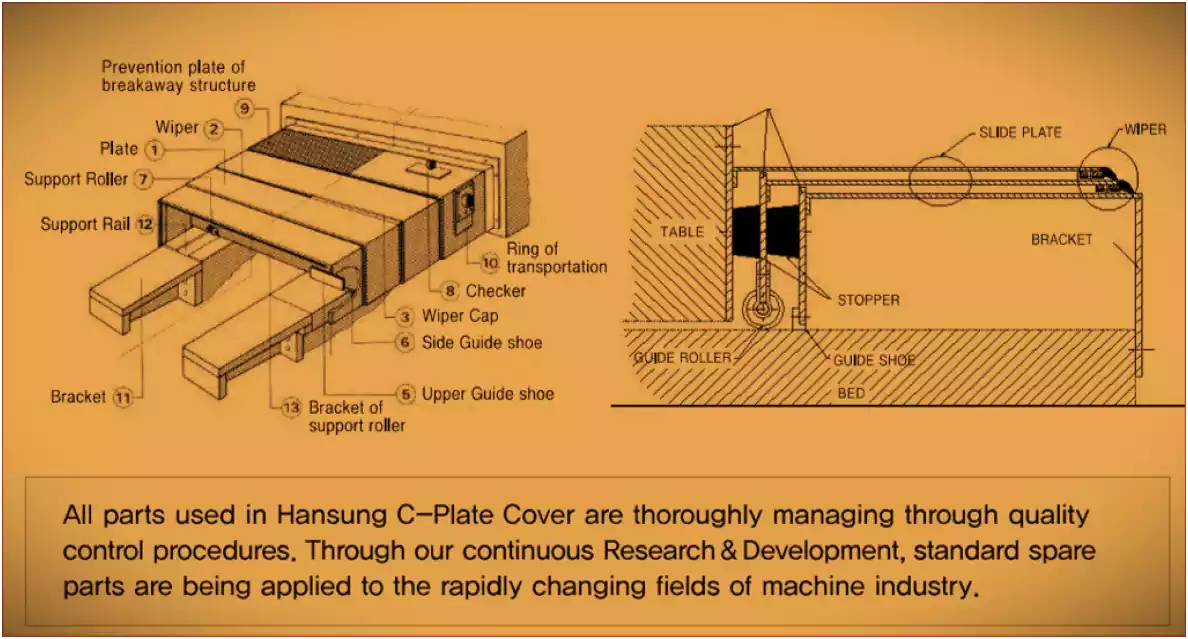

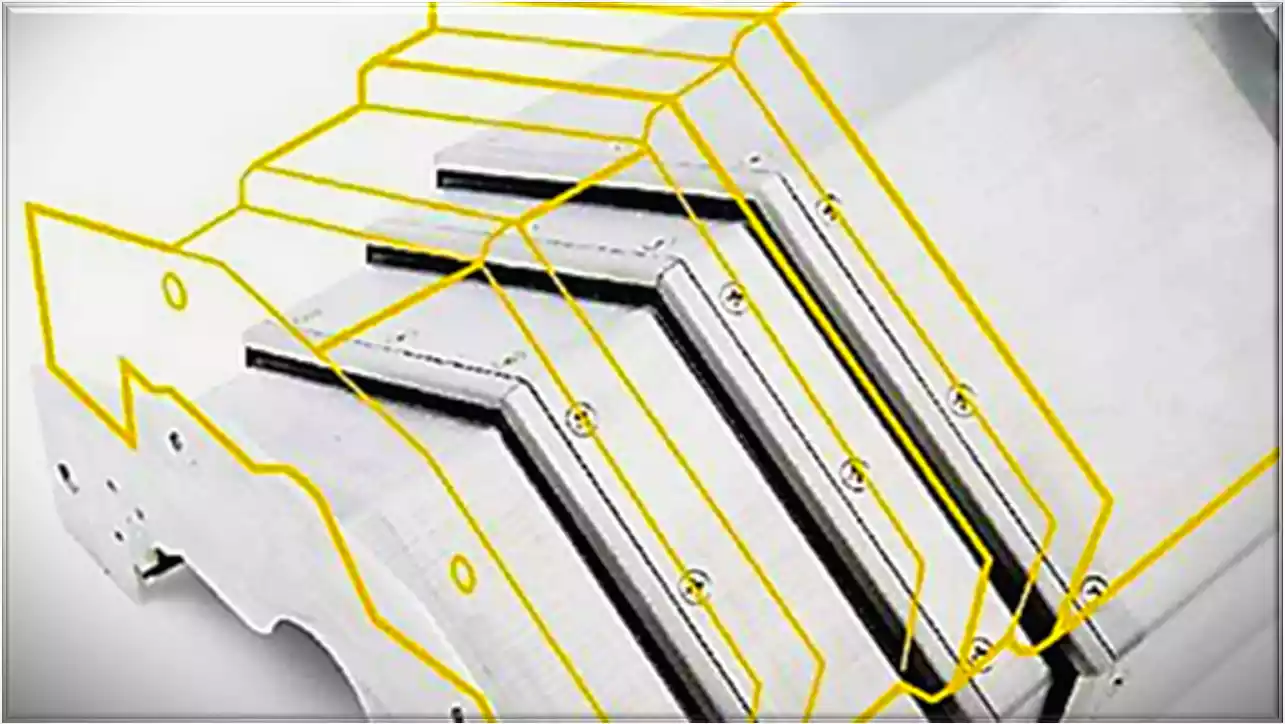

Types of C-Plate Cover

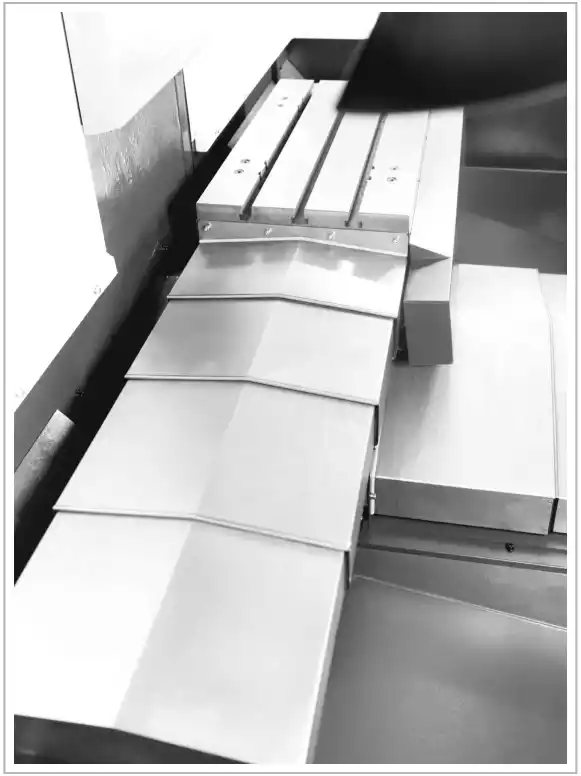

FLAT COVER

As a basic form; applys to small, or medium-sized Cover. Production & application available in any form; such as a vertical, or horizontal type of a machine, on customers' requirements.

SLANT-SHAPED COVER

Apply to small, or medium-sized Cover. Slant-shaped Cover designed to induce all foreign materials (generated in machining; such as chips, coolants, etc.) to run down to one side of the slope.

MOUNTAIN-SHAPED COVER

Apply widely to all types; small, medium, or large-sized Cover. Mountain-shaped Cover is a design added with bending on the upper part to induce all foreign materials (generated in machin- ing; such as chips, coolants, etc.) to run down to both sides of the slopes.

HEXAGON-SHAPED COVER

Apply to large-sized Cover.
Hexagon-shaped Cover is the design reinforced to strenghen its rigidity, which stands out for an excellent durability.

DOOR SHAPED COVER

Apply to medium, or large-sized vertical moving parts of a machine. Custom-made order available in all directions of movement; Up/down/right/left. Its fine design and shape also has a great compatibility with peripheral devices.

LATHE-SHAPED COVER

Apply to all types; small, medium, or large-sized Cover. This Lathe-shaped Cover designed to prevents the pheno- menon of coming-off of Cover by using rail.

SLIDE PLATE

Slide Plate is the main component of Cover; protects important parts of a machine from foreign materials generated (such as coolant and chips) in the process of machining.

BRACKET

Bracket is the component designed to be assembled to various parts of a machine, supporting the welded, or assembled plate.

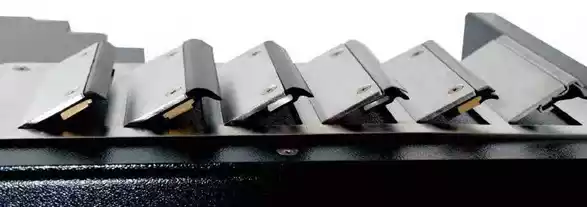

WIPER

Wiper is the component attaches to an end part of a plate; designed to operate together with Cover. Facilitate the pre- cision machining through a perfect contact force and an excellent sealing, giving a great effect on the life of machine.

ROLLER & GUIDE SHOE

Roller & Guide Shoe is the component adhered to a slider surface; helps Cover to move smoothly in straight lines on the surface of Bed, or LM of a machine in operation. The main materials used to produce is acetal and brass, and Hansung is holding various standard parts for various application conditions.

LINK

Link makes each plate of Cover moves in a same interval for a smooth operation. Durability and life-time of the Link are verified through our rigorous operation tests. Hansung is hold ing various standard parts suitable for all application condi- tions, and continuously enhancing reliability of the component through analysis & improvement of the applied link.

WIPER FOR COVER

Fulfil required specifications of fast- moving machines, based on its excellent durability.
excellent sealing, giving a great effect on the life of machine.

STOPPER

Stopper is the component as a buffer in various types of rubber materials; designed to absorb shock, and prevent noise when bracket meets together in operation.

WIPER FOR PLATE

Custom-made order available with high qualtiy.

Wiper for Door type

Custom-made order available in various sizes that fits to the various door-type, high functional wiper.

Wiper for Various shapes

Custom-made order available in various shapes that perfectly fits to the attaching parts.
