MULTI COVER & BELLOWS COVER

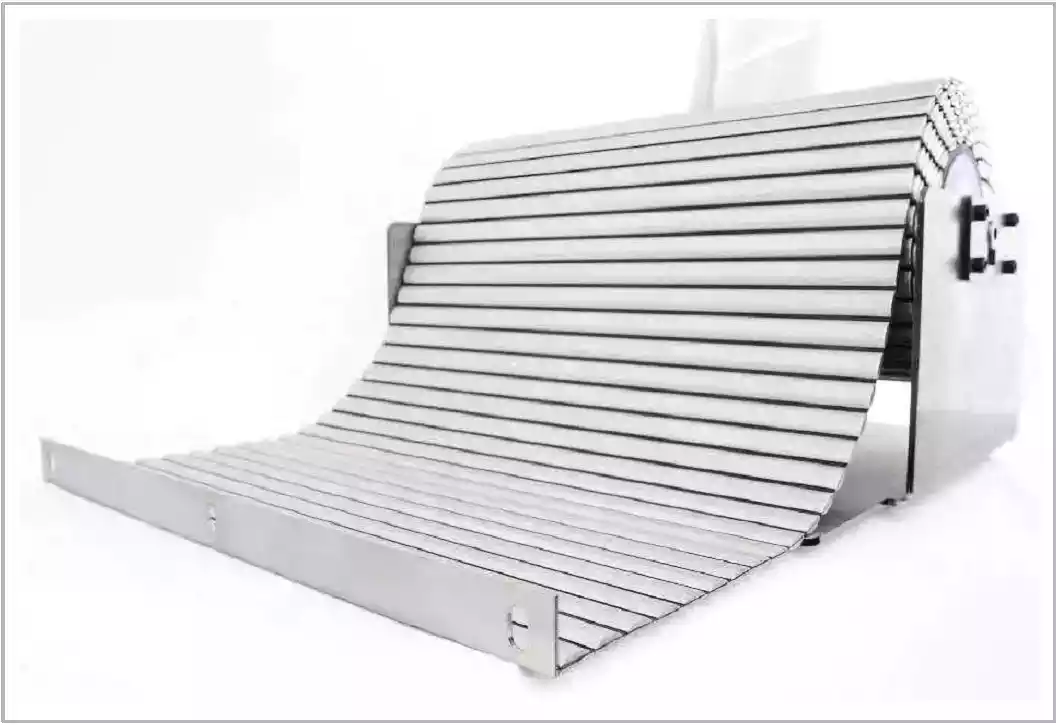

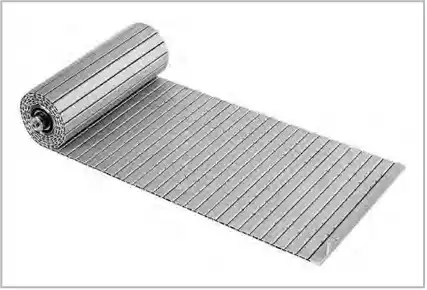

Lamella Cover & Bellows Cover

HANSUNG Multi & Bellows Cover are high-quality products, both effectively applicable to compact areas of a machine, and also optimized for high- speed machine. They protect the important part of machine, helping to maintain a long tool life of the machine.

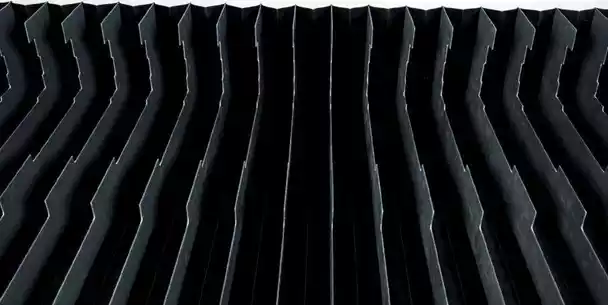

Bellows Cover is manufactured by high-quality sheets (not steel-plate) that is most suitable for a specific property and condition of a machine. Its unique superior flexibility & smooth operation, increase oil and water resistance.

Multi Cover is a cover added with SUS on Bellows Cover, especially protecting from chips & foreign materials in high temperature.

Applications of Multi & Bellows Cover

  • CNC lathe & Engraving machine
  • Grinding machine
  • Milling machine & Large-sized Planomiller
  • Boring Machine
  • For machines in need of oil proof & water proof.
  • Any important part of machines where protection is needed.

Features of Multi & Bellows Cover

  • Application available to all sized machines & high-speed machines in a compact area.
  • Great compatibility & flexibility with machines and machine parts.
  • Excellent design & extreme precision.
  • Suitable material & surface treatment available on customers’ specific requirements.
  • High durability through continuous R&D on standarization of machine parts.
  • Various shapes & designs available according to the features and types of a machine.
  • Application of the world-wide qualified X-type Link Cover :
    As a patented Cover, stands out for high-quality & reliably high-performances. Sheet manufactured with extreme precision notably reduces noise and vibrations generated by high-speed machining, and improve machining stability.

Types of Multi & Bellows Cover

STRAIGHT COVER

As a basic type; applys to grinding machines, measurement machines, etc. has minimized load which is easy & convenient to manage.

TABLE SHAPED COVER

Table shaped Cover widely applys to X, Y, Z shaft of large- sized machines for a protection of LM machines. Designed to meet requried conditions and is optimized for a perfect protection of the important part of a machine.

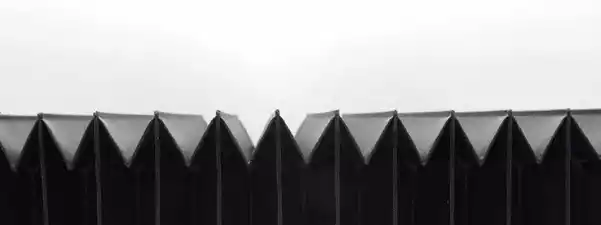

MOUNTAIN SHAPED COVER

To create an incline, upper part of a sheet is folded in a mountain-shape, so that the foreign materials (such as dust, chip) generated in machining process; run down to a slope, and strengthen the rigidity of the sheet, protecting a machine with higher performance.

ROUND SHAPED COVER

Apply to machines, where Sealing-type Cover is required; such as Duct, Robot, Arms, Ballscrew, etc. Perfect sealing and easy management of repair maintenance are available.

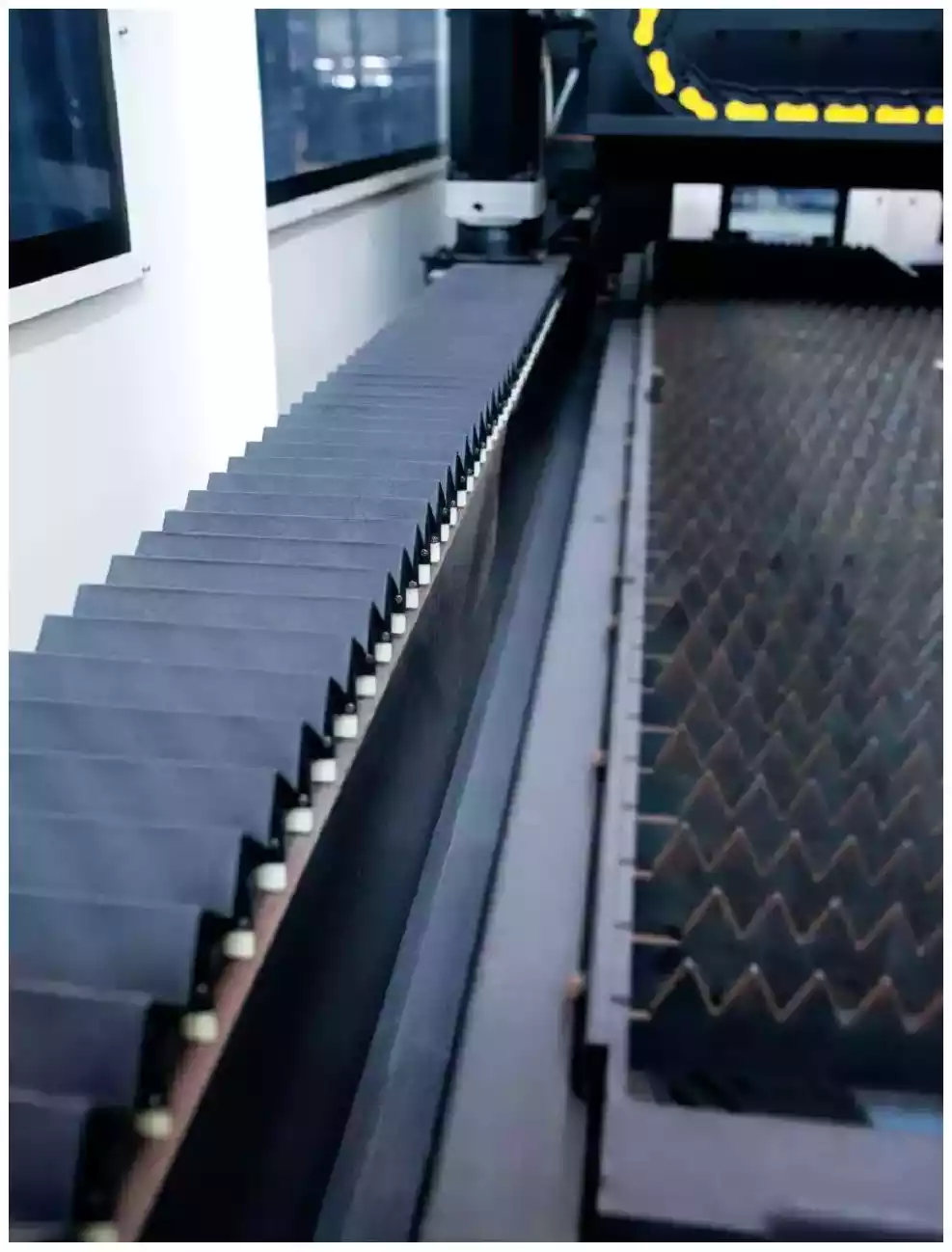

SQUARE SHAPED COVER

Apply to machines, where protection is needed; the side of Lift, discharger, laser beam, etc. and its flexibility enable it to apply in various fields.

Structures of Multi & Bellows Cover

Structures of Lamella & Bellows Cover

Hansung is managing the standard parts of Multi & Bellows Cover to ensure high quality; based on the appropriate design standards for various machines & rapidly changing machines and industry.

Structures of Lamella & Bellows Cover

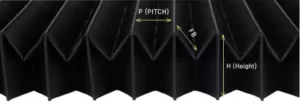

FB : Height of Mount.
W: Width.
H: Height,
L,MAX: Maximum Length ST + L,MIN
L.MIN: Minimum Length L,MAX - ST ST (Stroke): ST=LMAX - LMIN
P(Pitch): Distance between each mount in case of P = L.MAX/M M (Mount): MLMAX/P(Pitch) Number of folds.
