1. Digital readout system (for machine tools)

JENIX ABSOLUTE Digital Readout.

Main function

▶ For only absolute linear scale ▶ Preset / Preset recall ▶ 1/2 function ▶ mm / inch

▶ Muti datum point (up to 100) ▶ Bolt hole circle ▶ Process direction change ▶ Error correction ▶ Program reset

▶ LED test ▶ Lathe – 2 axes sum up, double counting, tool offset

Function of DIGITAL READOUT

  • Bolt hole circle
    Since up to 10,000 holes can be made along the circumference of the basic circle, it increases efficience of works and production in working for molds and processing parts.
  • ABS/INCR
    Incremental machining (zero approaching) can be used anytime by presetting the coordinate of each axis without error. In absolute positioning, JENIX counter can be saved 100 coordinates to memory.
  • Counting direction conversion
    Moving direction can be converted, (+) or (-) value can be selectable.
  • Preset & preset recall
    It makes your working more convenient with easy operation to preset data and recall it.
  • Summing up 2 axes’ values
    This can be used to sum up two feed values, the summed value displays at on Y-axis displaying panel.
  • Memory back-up
    By the battery built inside a counter, pre-saved data are preserved even when the power is off.

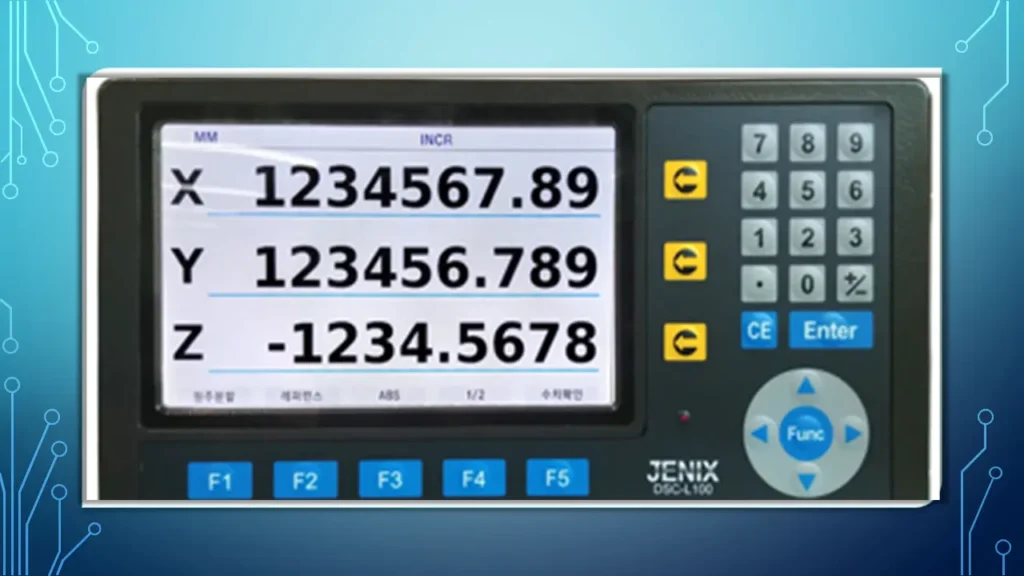

LCD Readout / display (Model: DSC-L100 ).
  • Easy setting from pop up menu.
  • Main funcion:
    Bolt hole circle / preset, preset recall/ initializing / resolution changing / direction changing/ Error correction / sum up 2 axes / ABS / radius diameter / RS232 output option

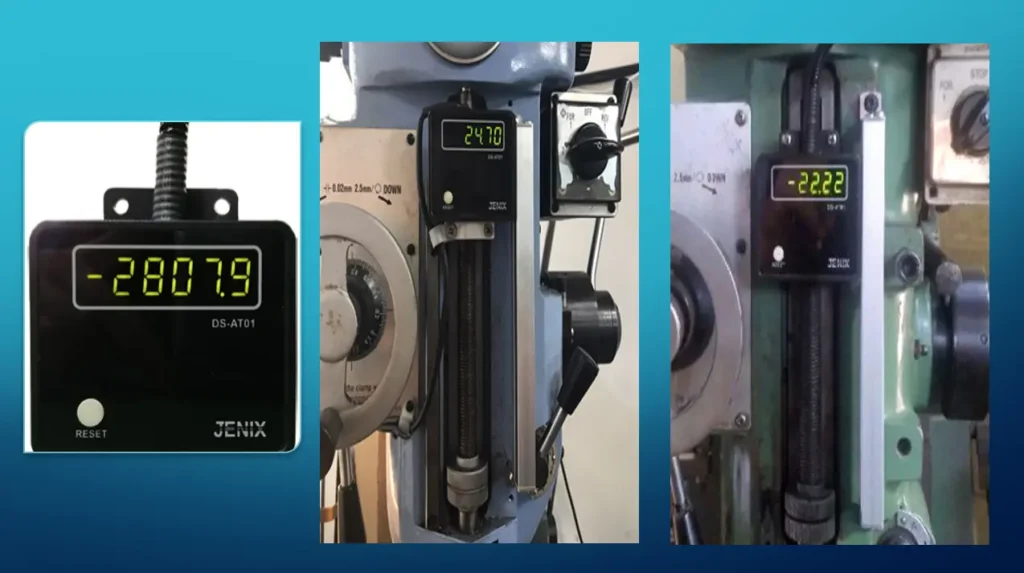

Display only for Quill-axis (DS-AT01): Encoder + magnetic scale.

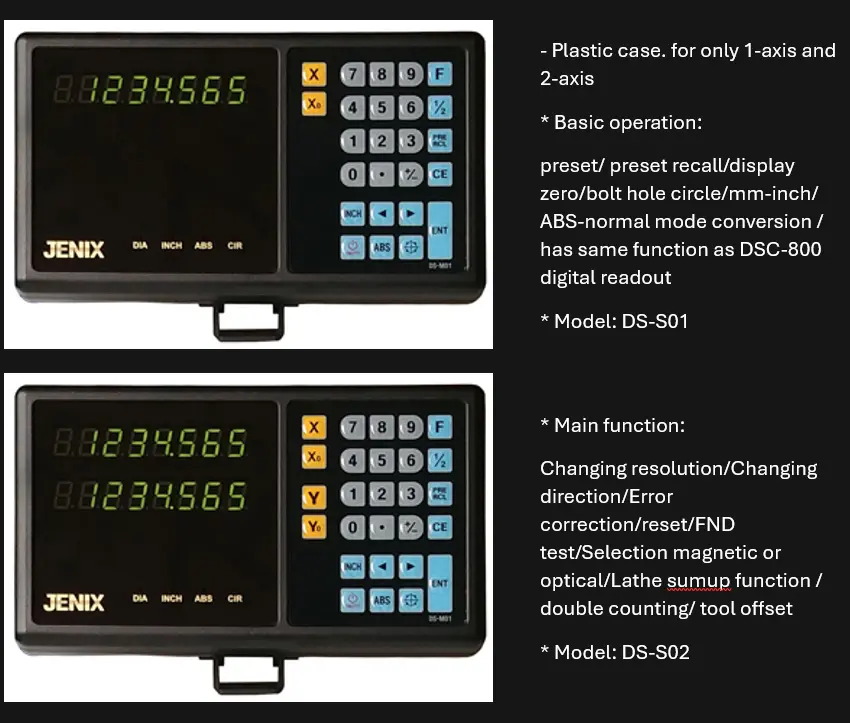

Display only for 1-axis & 2-axis (simple style).

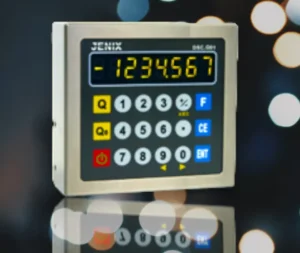

Small display unit for a pannel ( model: DSC-Q01)’

Small display unit for a pannel ( model: DSC-Q01).
1-axis dispaly

  • ABS
  • Process direction changing
  • Display zero
    – Dimensions(mm): 85 x 80 x 28 mm / inch
  • Error correction
  • Double counting

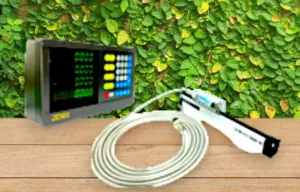

2. INCREMENTAL LINEAR SCALE.

Built-in GLASS scale guarantees accuracy. There are four types of incremental linear scales, medium, slim, ultra-slim and long-axis type, and mounting is easy.

The accuracy and stability of JENIX LINEAR SCALE are internationally recognized. It is exported all over the world.

The digital readout system is made in Korea, world-recognized quality with guaranteed after-sales service and technical support.

[ Applications]

  • Plannner Miller, Big lathe, Big machine
  • Wood machine, Cutting macine, Industrial machine
  • Conventional milling, lathe, grinder etc
  • Position reading for Stacker crain, Conveyer
  • NC lahte, Machining center and other automation machine
  •  Toolmakers microscope
  • Other industrila machinery and automation machinery.
